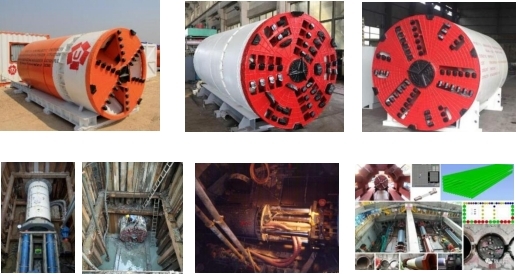

中小型泥水平衡頂管掘進機 （Ф700 - Ф2200）
Small and Medium Sized Slurry Pipe Jacking Machine
中小型泥水平衡頂管機應用于市政中小型管道（污水管、供水管、供電電纜管、通信電纜管、天然氣管等）的建設，管材通常為砼管、鋼管、玻璃鋼夾砂管，可以適應在土、砂土、含有小粒徑的卵石和礫石等地質條件下施工，適用直線或曲線頂進距離100m-1000m。采用泥水平衡方式完成土體切割、推進、連續(xù)排渣等作業(yè)，完成中小型管道安全、高效、高質量非開挖鋪設，可以較好地控制地面沉降。
Small and medium-sized slurry balance pipe jacking machine is used in the construction of municipal small and medium-sized pipelines (sewage, water supply, power cable pipe, communication cable pipe, natural gas pipe, etc.). The pipes are usually concrete pipe, steel pipe, glass fiber reinforced plastic sand pipe, which can be adapted to the construction under different geological conditions such as soil, sand soil, pebbles and gravel with small particle size, and are suitable for straight or curve jacking distance of 100m-1000m. The slurry balance method is used to soil cutting, propulsion, continuous slag discharge and other operations, and the safe, efficient and high-quality trenchless laying of small and medium-sized pipelines can be completed, which can better control the ground settlement.
|
Pipe ID (mm) |
Machine DimensionOD*L(mm) |
Cutterhead Power (kW*set) |
Torque (kN·m) |
Revolution (r/min) |
Steering Jack (kN*st*set) |
Hydraulic Unit (kW) |
Slurry Line Diam.(mm) |
Shaft Dimensio n (mm) |
Power Source (Hz/V) |
|
Φ700 |
925 x 3500 |
18.5 x 1 |
28 |
0—7 |
294 x 30 x 4 |
1.1 |
100 |
4000x3000 |
50/400 |
|
Φ750 |
975 x 3500 |
18.5 x 1 |
28 |
0—7 |
294 x 30 x 4 |
1.1 |
100 |
4000x3000 |
50/400 |
|
Φ800 |
1020 x 3500 |
30 x 1 |
46 |
0—7 |
294 x 30 x 4 |
1.1 |
100 |
4000x3000 |
50/400 |
|
Φ900 |
1100 x 3500 |
30 x 1 |
46 |
0—7 |
294 x 35 x 4 |
1.1 |
100 |
4000x3000 |
50/400 |
|
Φ1000 |
1220 x 3800 |
37 x 1 |
70 |
0—6 |
490 x 35 x 4 |
1.5 |
100 |
6000x4000 |
50/400 |
|
Φ1100 |
1330 x 3800 |
37 x 1 |
70 |
0—6 |
490 x 40 x 4 |
1.5 |
100 |
6000x4000 |
50/400 |
|
Φ1200 |
1470 x 3800 |
45 x 1 |
107 |
0—5 |
784 x 45 x 4 |
2.2 |
100 |
6000x4000 |
50/400 |
|
Φ1350 |
1640 x 3800 |
55 x 1 |
130 |
0—5 |
784 x 45 x 4 |
2.2 |
100 |
6000x4000 |
50/400 |
|
Φ1500 |
1810 x 3900 |
45 x 2 |
215 |
0—4 |
784 x 50 x 4 |
3 |
150 |
6000x4000 |
50/400 |
|
Φ1650 |
1950 x 3900 |
45 x 3 |
344 |
0—3 |
980 x 60 x 4 |
3 |
150 |
6500x4000 |
50/400 |
|
Φ1800 |
2190 x 4000 |
45 x 3 |
344 |
0—3 |
784 x 80 x 8 |
5.5 |
150 |
6500x4000 |
50/400 |
|
Φ2000 |
2440 x 4000 |
55 x 3 |
525 |
0—3 |
784 x 80 x 8 |
5.5 |
150 |
7000x4000 |
50/400 |
|
Φ2100 |
2540 x 4000 |
55 x 3 |
525 |
0—3 |
784 x 80 x 8 |
5.5 |
150 |
7000x4000 |
50/400 |
|
Φ2200 |
2610 x 4000 |
55 x 3 |
525 |
0—3 |
784 x 80 x 8 |
5.5 |
150 |
7000x4000 |
50/400 |
注：以上參數可根據用戶需求適當調整。Note: Above parameters can be adjusted based on clients needs. （如果排版放得下，請放成兩排。）
